Salt Water Spray Aluminum Led Street Light Rated IK08 Impact Rating

  • 1
  • 2

Brand Name : Die Casting Man

Model Number : YASL-19-50

Certification : CE, RoHs, ENEC, CB

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C

Supply Ability : 10000PCS/Month.

Delivery Time : 7-30 days base on order quantity

Packaging Details : Carton box

Color Temeperature : 3000K, 4000K, 6500K

Pipe : Φ 60MM

Lumen : 21000lm

Color : Gray, Black, Customized

Material : Die-casting Aluminium+tempered glass

Wattage : 50w 60w

Contact Now

Outdoor Street Light empty housing YASL-19

Salt Water Spray Aluminum Led Street Light Rated IK08 Impact Rating
INSTALL.
This fixture is mounted on a 4-14m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15°

Fixture has internal clamps to secure itself to pole.
This 150 Watt LED STREET LIGHT is ideal for residential street and parking lot outdoor lighting applications. It is
also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree.
This fixture has 1000 hours salt water spray test. Fixture is tough and durable rated at IK08 impact rating.

It has two optional. One is Glass optional, and the other is Frame optional.

Salt Water Spray Aluminum Led Street Light Rated IK08 Impact Rating

Product Details:

Product Code YASL-19-30M YASL-19-50M YASL-19-80M YASL-19-150M
Input Wattage 50W 60W 100W 200W
Color Temperature 2700~6500K 2700~6500K 2700~6500K 2700~6500K
Luminous Flux 6500-7000lm 13000-15000lm 13000-15000lm 26000-30000lm
Input Voltage AC90~305V AC90~305V AC90~305V AC90~305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
color rendering index Ra≥70 Ra≥70 Ra≥70 Ra≥70
Temperature of Working Condition -40~50ºC -40~50ºC -40~50ºC -40~50ºC
Humidity of Working Condition 20%~90%RH 20%~90%RH 20%~90%RH 20%~90%RH
LED Lifetime 50000h 50000h 50000h 50000h
Protectin Grade IP66 IP66 IP66 IP66
Protection level IK08/09/10 IK08/09/10 IK08/09/10 IK08/09/10
Installation Pipe Diameter φ45/60mm φ45/60mm φ45/60mm φ45/60mm
Installation Height 4-6m 5-8m 6-10m 8-14m
Net Weight 3.1kgs 4.1kgs 5.0kgs 6.7kgs
Gross Weight 3.5kgs 4.6kgs 5.5kgs 7.5kgs
Packing Size(m m) 580*250*165 630*280*155 670*310*155 820*340*155

Product Size

Product Code YASL-19-30M YASL-19-50M YASL-19-80M YASL-19-150M
L(mm) 459 577 627 768
W(mm) 186 233 271 301
H(mm) 119 103 103 104

Product Datasheet
Item No. YASL-19-30 YASL-19-50 YASL-19-80 YASL-19-150
Power 30W 50W 80W 150W
Lumen Efficiency 140lm/w 140lm/w 140lm/w 140lm/w
Lumen 3800lm 6500lm 10400lm 19500lm
Product Size (mm) 459X186X119 577X233X103 627X271X103 768X301X104
Electrical Data
Working Voltage AC100-265V 丨 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20℃ ~+50℃ , 10%~90%RH
Lifespan L70 at 25℃ > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class Ⅱ
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%

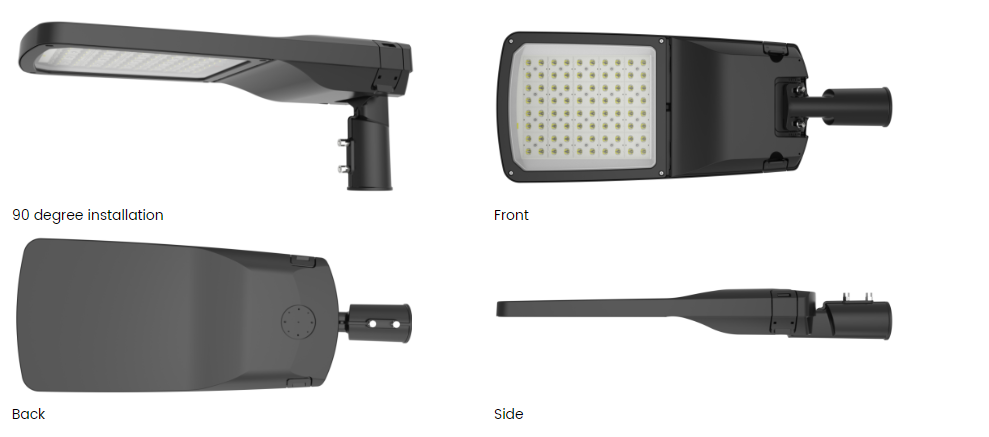

Product Picture

Salt Water Spray Aluminum Led Street Light Rated IK08 Impact Rating

Line Drawing

Salt Water Spray Aluminum Led Street Light Rated IK08 Impact Rating

Equipment

Salt Water Spray Aluminum Led Street Light Rated IK08 Impact Rating

Salt Water Spray Aluminum Led Street Light Rated IK08 Impact Rating

Company profile

* A professional origin die casting manufacturer of led outdoor light.

* With more than 2 decades years experience.

* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City

* ISO9001 quality control system.

* CE, RoHS, TUV certificates.

* ODM and OEM service are both available to customers domestic and overseas.
